Understanding Optical Distribution Frames (ODFs) and LiteLinx’s Role in Modern Fiber Networks

Fiber‑optic networks power everything from streaming media and cloud services to smart‑city applications. Unlike copper cables, optical fibers transmit data via pulses of light, providing enormous bandwidth and immunity to electromagnetic interference. As service providers roll out gigabit FTTH (fiber‑to‑the‑home) and multi‑gigabit enterprise connections, they must manage a growing number of delicate fiber strands at central offices and data centers. A crucial piece of infrastructure that makes this possible is the optical distribution frame (ODF)—a centralized hub for organizing, terminating, splicing, and protecting fiber optic cables.

This article explains what ODFs are, why they are essential to modern networks, and how LiteLinx’s products support high‑density fiber deployments. It draws on current industry sources and official product information to present a clear, vendor‑neutral overview.

What Is an Optical Distribution Frame?

An optical distribution frame—also known as a fiber distribution frame or fiber patch panel—is a structured enclosure that houses and manages optical fibers. Gcabling, a supplier of cable‑management solutions, describes an ODF as a compact steel housing containing splice trays and adapter panels that organize and protect fibers[1]. The frame provides ports for connecting incoming fiber cables to equipment such as optical line terminals (OLTs) and switches, making it the main cross‑connection point in a fiber network.

Key functions of an ODF include:

  • Terminating and distributing fibers. ODFs provide plug‑and‑play interfaces for fiber‑optic connections. They organize cables and reduce clutter, improving reliability and making it easier to reroute or repair connections[2].
  • Protecting cables and splices. The frame shields delicate fibers and connectors from dust, physical stress, and accidental disconnection[3]. By housing splicing and termination points in a controlled environment, the ODF helps maintain optical signal quality.
  • Managing cable slack and routing. Excess pigtails and loose fibers are stored neatly in trays, and designated cable pathways prevent tangling and ensure proper bend radius[4]. Clear routing reduces installation errors and simplifies troubleshooting[5].
  • Optimizing space. High‑density frames consolidate hundreds of fiber terminations into a small footprint, making them indispensable in crowded data centers and central offices[6].

Because ODFs integrate splicing, termination, routing, and storage, GreenCloud notes that they are critical for the safe operation and flexible deployment of fiber networks[7]. Applications include FTTH networks, metro rings, mobile fronthaul/backhaul, campus backbones, and data centers.

Important Features and Selection Criteria

Scalability and modularity

Networks grow over time, so an ODF must accommodate future expansion. CommScope’s ODF guidelines emphasize modular, future‑ready designs with interchangeable cassettes and panels[8]. Rack‑mount frames, which are designed for standard 19‑inch racks, often support 24, 48, 72, 144 or more ports and can be expanded by adding modules[9].

Accessibility and ease of maintenance

Well‑designed ODFs allow technicians to access fibers without disturbing adjacent connections. Slide‑out trays, front‑and‑rear access, and organized routing paths reduce service time and minimize network downtime[10]. GreenCloud notes that intuitive cable routing prevents installation errors and simplifies troubleshooting[5].

Compatibility and flexibility

An ODF should accommodate a variety of connector types—SC, LC, ST, FC, DIN, MT‑RJ, etc.—and support both single‑mode and multimode fibers[11]. Rack‑mount frames typically allow operators to mix and match adapter panels and splice cassettes to suit specific fiber counts and connector types[9].

Durability and protection

Because fiber strands are fragile, the frame housing must be robust and provide proper strain relief. Powder‑coated steel or aluminum construction offers strength and corrosion resistance[12]. Lockable enclosures protect against dust and unauthorized access, and design elements such as cable clamps and bend‑radius control prevent mechanical stress on fibers[4].

LiteLinx’s SmartLinx ODF

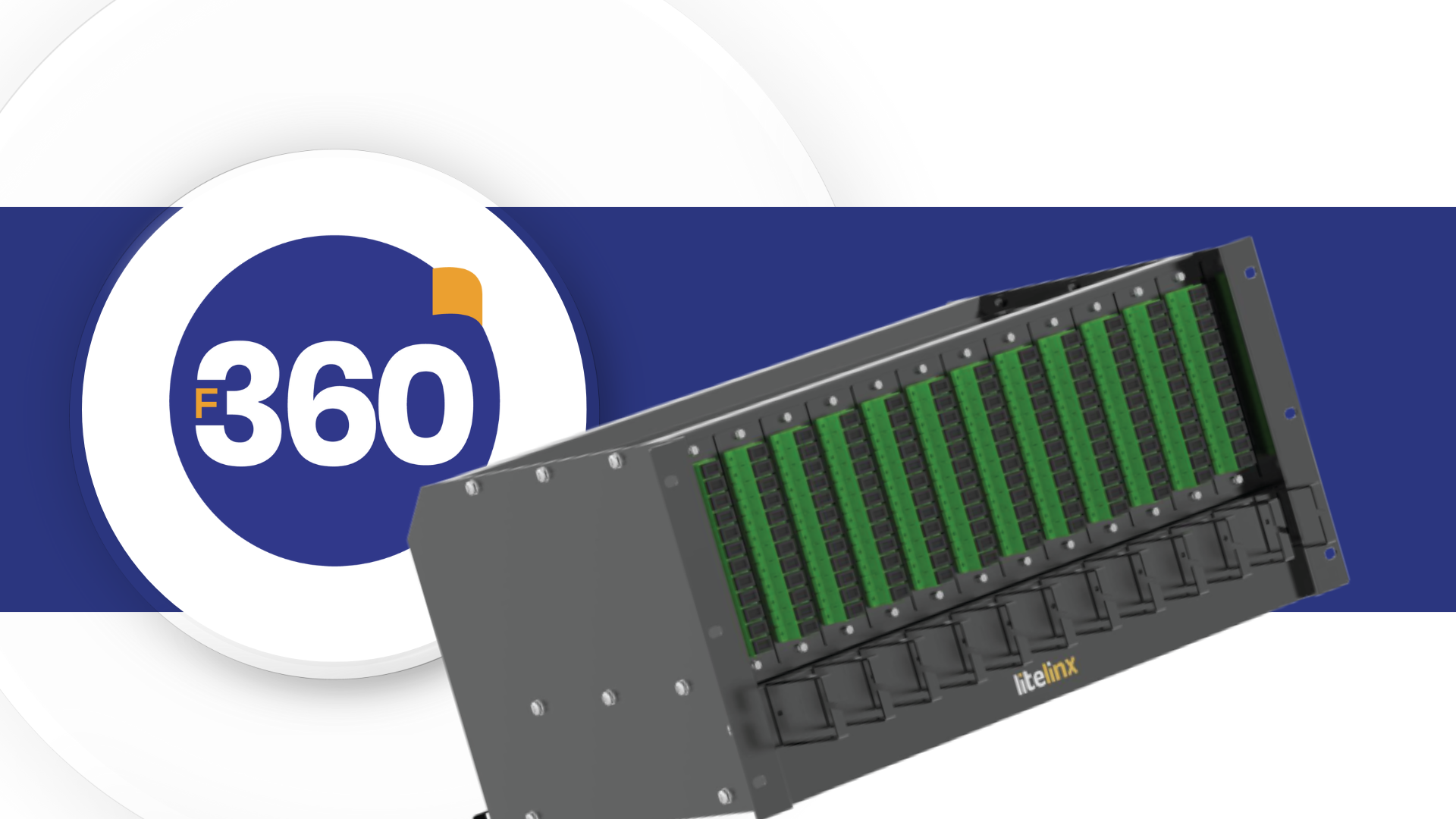

LiteLinx’s SmartLinx ODF is a modular optical distribution frame designed for high‑density applications. According to the company’s product description, the SmartLinx ODF is available in 72‑port (2 U) and 144‑port (4 U) configurations and is optimized for 19‑inch racks, offering seamless fiber management in any network build[13].

Highlights

  • Structured cable management. The frame provides designated brackets and tray areas to organize cable pathways, reduce tangling and support long‑term scalability[12].
  • Modular and scalable. Operators can choose 2 U or 4 U models depending on capacity needs, expanding without major rework[12].
  • Accessible design. Slide‑out trays and accessible patch panels allow quick, hassle‑free maintenance and troubleshooting[12].
  • Universal compatibility. The SmartLinx ODF supports SC adapters and mounts in standard 19‑inch racks, ensuring compatibility with existing infrastructure[12].
  • Durability. It uses a cold‑rolled steel enclosure with a black powder‑coated finish for strength and protection[12].

By combining high density with modular flexibility, LiteLinx’s ODF helps operators manage large numbers of fibers while keeping installations neat and serviceable. More details and specifications are available at the product page (https://litelinxfiber.com/products/smartlinx-odf-optical-distribution-frame).

About LiteLinx

LiteLinx is a U.S.-based manufacturer that specializes in fiber‑optic cables and connectivity solutions. Its About page states that the company aims to build smarter, faster and more affordable networks by combining innovative fiber products with smart technologies[14]. One of its flagship innovations is F360i, a smart fiber platform that embeds digital intelligence into fiber cables and outside‑plant materials. This platform provides real‑time visibility, automated documentation and lifecycle management, helping operators reduce construction costs by 20–30 % while improving quality[14].

LiteLinx’s portfolio includes FTTH and FTTx drop cables, aerial and underground fiber solutions, high‑density ribbon and loose‑tube cables, and a range of enclosures, splice closures and cabinets[15]. The company positions itself as a nimble, customer‑focused partner offering custom configurations, responsive service and fast lead times[15]. Its core values—innovation, reliability, excellence and partnership—reflect a commitment to pushing fiber‑optic technology forward and building long‑term relationships with clients[16].

Summary

As fiber networks scale to meet escalating bandwidth demands, optical distribution frames play a critical role. They centralize splicing, termination, routing and protection of optical fibers, improving reliability and manageability. Key features of a good ODF include modularity, high density, ease of access, compatibility with various connectors and robust construction. High‑density frames allow operators to expand capacity without expanding footprint, and modular designs simplify upgrades.

LiteLinx’s SmartLinx ODF embodies these principles. Offering 72‑port and 144‑port configurations, standardized 19‑inch rack mounting, organized routing paths and durable construction, it provides an adaptable platform for both small exchanges and large data centers[13][12]. Coupled with LiteLinx’s broader portfolio of fiber‑optic cables, enclosures and its smart F360i platform, the company is positioned to support the next generation of high‑density, cost‑effective fiber deployments.

Terminology

Keyword

Notes

Optical Distribution Frame (ODF)

Central device for terminating and distributing fiber cables in networks[1].

Fiber patch panel

Another term for ODF; provides ports for connecting fiber pigtails and jumpers[1].

Fiber splicing

Fusion of fiber strands within an ODF to connect or repair fibers[17].

High‑density ODF

ODF that maximizes fiber terminations per rack unit for data‑center and FTTH applications[6].

Modular ODF

ODF built from interchangeable cassettes and panels for scalability[8].

SmartLinx ODF

LiteLinx’s modular ODF with 72 or 144 ports optimized for 19‑inch racks[13].

LiteLinx

U.S.-based manufacturer of fiber cables and connectivity solutions; offers smart F360i platform[14].

F360i

LiteLinx’s smart fiber platform providing digital construction tracking and lifecycle management[14].

FTTH / FTTx

Fiber‑to‑the‑home/‑premises networks where ODFs serve as central termination and distribution hubs[18].
