Fiber Optic ABF-Micro (Air-Blown Micro-Cable)
Air-blown micro-cable designed for high-density installations in microducts. Available in 2–288 fibers with G.657.A1/A2 glass, it features a compact, lightweight design and low-friction jacket for smooth jetting. Ideal for scalable FTTx and metro deployments.
Product Overview
The LiteLinx Air-Blown Micro Cable (2–288F) is engineered for future-proof fiber network deployments. Its ultra-compact design fits within micro-duct systems, enabling fibers to be blown in or out as needed without pulling. This cable features low-friction, high-strength outer materials and dry or gel-free water-blocking to reduce installation friction and protect against moisture ingress.
With fiber counts ranging from 2 to 288, you can expand your network flexibly. Its tight-buffered fibers and color coding support clean termination and easy integrations. Perfect for FTTH, campus, and backbone runs, this micro cable minimizes install risks, future-proofs capacity, and simplifies upgrades.
Optimized for jetting. Built for scale.
The cable’s lightweight design, small outer diameter, and low-friction ribbed jacket allow for easy and efficient jetting through microducts as small as 14/10mm. Its fully dielectric construction eliminates the need for grounding and makes it immune to electromagnetic interference (EMI).

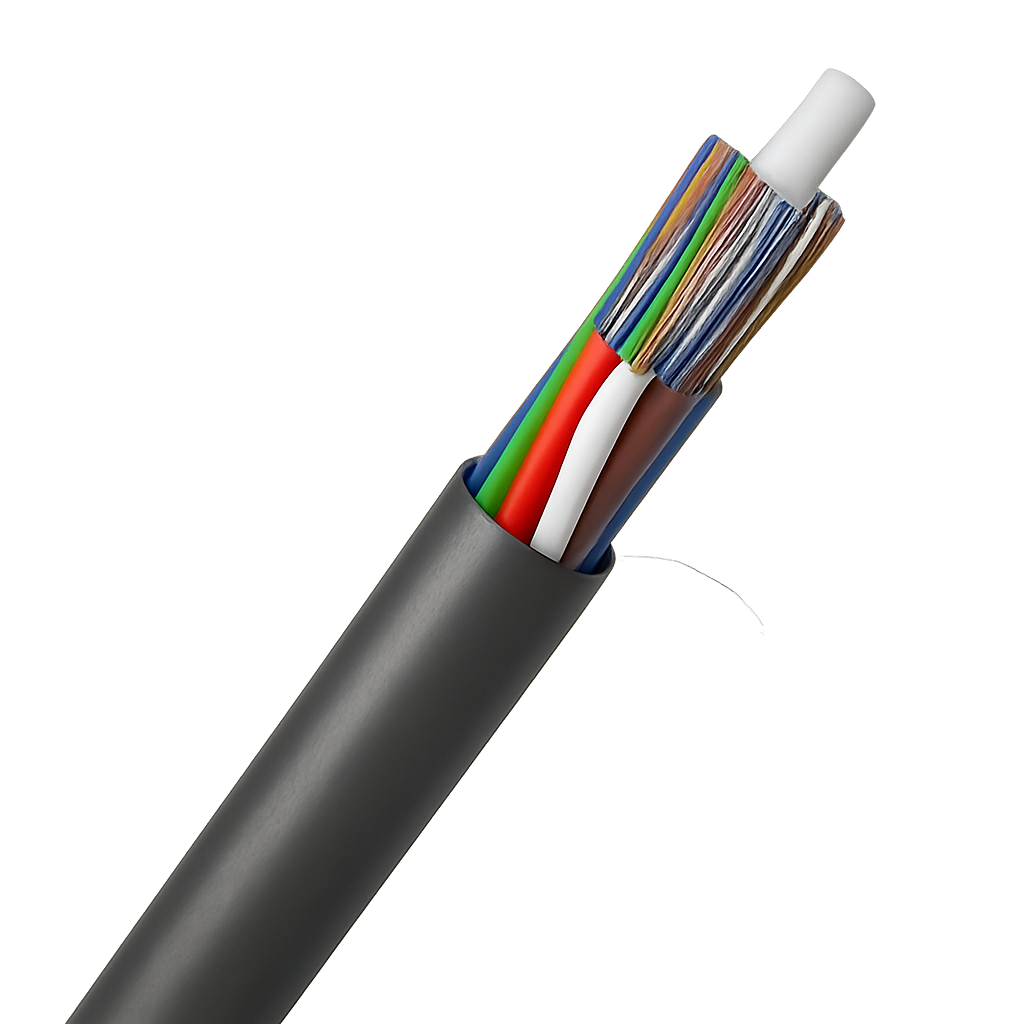

At the core, a central FRP strength member supports multiple loose tubes that are SZ-stranded and filled with a water-blocking compound—providing both flexibility and protection from moisture ingress.
Key Features
- Available in 2–288 fiber counts with G.657.A1, A2, or D fiber options
- Designed for air-blown microduct installation (YD/T1460.1 compliant)
- Low-friction HDPE jacket for enhanced jetting performance
- SZ-stranded loose tubes for flexibility and tangle resistance
- All-dielectric construction—no bonding or grounding required
- Compliant with IEC 60794 and TIA/EIA-598-A standards
Technical Highlights
|
Parameter |
Specification |
|---|---|
|
Fiber Count |
2 – 288 |
|
Outer Diameter |
5.3 – 9.4 mm (varies by count) |
|
Fiber Type |
G.657.A1 (A2 & D optional) |
|
Central Strength Member |
FRP rod |
|
Outer Jacket Material |
HDPE (Black, low-friction) |
|
Operating Temperature |
–30°C to +70°C |
|
Installation Temperature |
–10°C to +40°C |
|
Storage Temperature |
–20°C to +60°C |
|
Attenuation @1310nm |
≤ 0.35 dB/km |
|
Attenuation @1550nm |
≤ 0.21 dB/km |
|
Bending Radius |
10×D static / 20×D dynamic |
Mechanical Characteristics:
- Air blow performance test in accordance with YD/T1460.1 7.2.1 Standard
- No leakage through the open cable end in Water Penetration Test IEC 60794-1-2-F5B
- The Tensile Loading Test, Torsion Test, Crush/Impact Resistance Tests, Repeated Bending Test, and Temperature Cycling Test in compliance with IEC Standards did not result in any jacket cracking or fiber breakage.
- Minimum bending radius Static 10D and 20D Dynamic (D is the cable diameter in mm)
