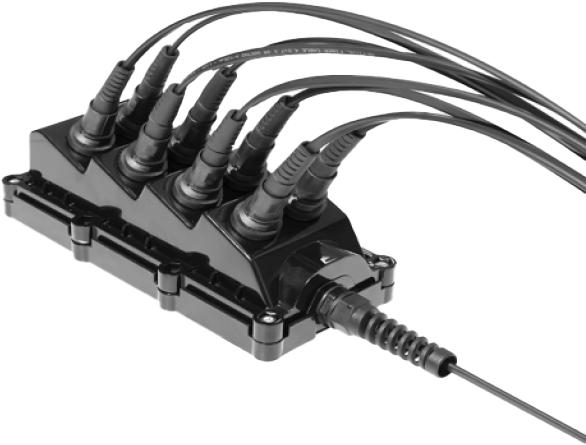

Multiport Service Terminal for FTTH & FTTx Deployments (MST)
Hardened Multiport Service Terminal (MST) designed for rapid FTTH deployment with up to 12 ports. Features pre-terminated drop connectors, IP68-rated sealed housing, and multiple mounting options. No splicing required—just plug and go.
Product Overview
The LiteLinx Multiport Service Terminal (MST) is engineered for outdoor FTTH/FTTx deployments as a compact and resilient fiber distribution hub. This terminal supports multiple drop ports, internal splitter modules, and secure cable management—all within a weatherproof, lockable enclosure.
Plug-and-play fiber distribution made easy.
Perfectly suited for neighborhood hubs, MDU (multi-dwelling unit) clusters, or last-mile distribution nodes, the MST allows seamless integration of feeder, drop, and splice functions in one unit. Its modular design facilitates future expansion, while internal trays and routing guides simplify installation and maintenance.
Designed for real-world outdoor use, the MST uses UV-resistant materials, corrosion-proof hardware, and weather seals to protect fiber assets across temperature and moisture extremes. Whether you’re rolling out new FTTH networks or densifying existing builds, the LiteLinx MST streamlines operations by reducing field splices, improving reliability, and minimizing costs.
This rugged IP68-rated terminal comes pre-configured with 4, 6, 8, or 12 hardened adapter ports, supporting both FlatDrop and Pushable Duct STUBBED round cable options. Its sealed design eliminates the need for on-site assembly while offering superior protection against dust, water, and environmental stress.
Ideal for ODN (Optical Distribution Network) applications, LiteLinx MST supports up to 1 km stub lengths, integrates splitter options, and accommodates a wide range of mounting configurations, including strand-mount, pedestal, pole, and below-grade handholes.
Designed for -40°C to +80°C operation, the terminal is built to withstand extreme weather while ensuring secure fiber alignment, efficient fusion protection, and long-term durability.
Key Features
- Pre-terminated “plug-and-play” design – no field splicing needed
- Available in 4, 6, 8, or 12 hardened SC/APC port configurations
- IP68-rated, factory-sealed for outdoor and underground use
- Accepts FlatDrop and Pushable Duct STUBBED cables
- Compatible with splitters (1x2, 1x4, 1x8, etc.)
- Supports up to 24 fusion protection sleeves
- Stub cable length options up to 1 km
- Multiple mounting options: strand, pole, pedestal, handhole
- Operating temperature: –40°C to +80°C
Technical Specifications
|
Specification |
Details |
|---|---|
|
Port Configurations |
4, 6, 8, or 12 hardened adapters |
|
Ingress Protection |
IP68 |
|
Cable Types |
FlatDrop (4.6 × 8.9 mm), Round (5–14 mm) |
|
Stub Length |
Up to 1,000 meters |
|
Splitters |
Supports 1–2 PLCs |
|
Mounting Options |
Strand, Pole, Pedestal, Handhole |
|
Bending Radius |
20 × Cable Diameter |
|
Fire Rating |
UL94-V0 |
|
Fusion Sleeves Supported |
1 to 24 |
|
Cable Jacket Options |
LSZH, PE, TPU |
|
Operating Temperature |
–40°C to +80°C |
