864-Fiber Multi-Tube High Count Ribbon Cable
High-density 864-fiber multi-tube cable designed for long-haul and metro networks. Features 108-fiber per tube ribbon stacks, water-blocked SZ-stranded design, and a compact 23.4 mm diameter. Ideal for high-capacity OSP applications in demanding environments.
Product Overview
The LiteLinx 864-Fiber Multi-Tube Cable is designed for large-scale fiber builds where maximum capacity, environmental toughness, and installation flexibility are critical. Perfect for long-haul backbones, metro loops, and high-density data routes, this cable delivers 864 fibers in a rugged, space-efficient design.
Mass capacity. Compact footprint. Proven resilience.

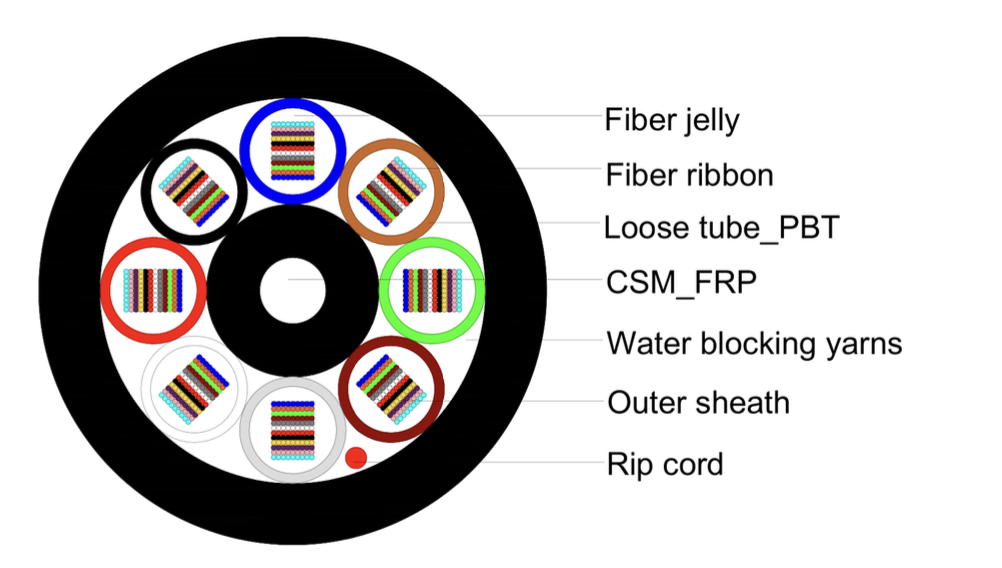

At the core of the design is a non-metallic GFRP (Glass Fiber Reinforced Plastic) central strength member, providing structural integrity and supporting the SZ-stranded loose tube architecture. Each tube contains a 108-fiber high-density ribbon stack, allowing fast, cost-effective mass fusion splicing while maximizing fiber density per duct.
The entire core is filled with jelly compound and water-blocking yarns, and protected by a UV-resistant HDPE jacket, enabling deployment in direct burial, duct, or aerial environments. Despite the high fiber count, the cable maintains a compact 23.4 mm diameter, reducing friction in tight conduit runs.
This RoHS-compliant, high-performance cable is built for telecom providers, carriers, and municipalities that need to move more fiber with less space, and do it reliably—even in harsh conditions.
Key Features
- 864 fibers total in high-density 108-fiber ribbon format
- Multi-tube SZ-stranded design for flexibility and tangle resistance
- Mass fusion splicing ready for efficient field deployment
- Central non-metallic FRP strength member for core stability
- Jelly-filled core and swellable water-blocking yarns for moisture protection
- Black HDPE outer jacket for UV and environmental resistance
- Ideal for duct, direct burial, or aerial installation
Technical Specifications
|
Specification |
Details |
|---|---|
|
Fiber Count |
864 |
|
Ribbon Format |
108 fibers per tube |
|
Loose Tube Count |
8 |
|
Central Strength Member |
GFRP rod (3.7 mm) |
|
Outer Diameter |
23.4 mm (±0.5 mm) |
|
Weight |
~456 kg/km |
|
Water Blocking |
Jelly + water-swellable yarns |
|
Jacket Material |
HDPE (black) |
|
Attenuation @1310 nm |
≤ 0.35 dB/km |
|
Attenuation @1550 nm |
≤ 0.25 dB/km |
|
Operating Temperature |
–40°C to +60°C |
|
Installation Temperature |
–20°C to +60°C |
|
Storage Temperature |
–40°C to +70°C |
|
Bend Radius |
Static: 12.5×D / Dynamic: 25×D |
|
Compliance |
TIA/EIA-598-A, ITU-T G.657.A1, RoHS |
