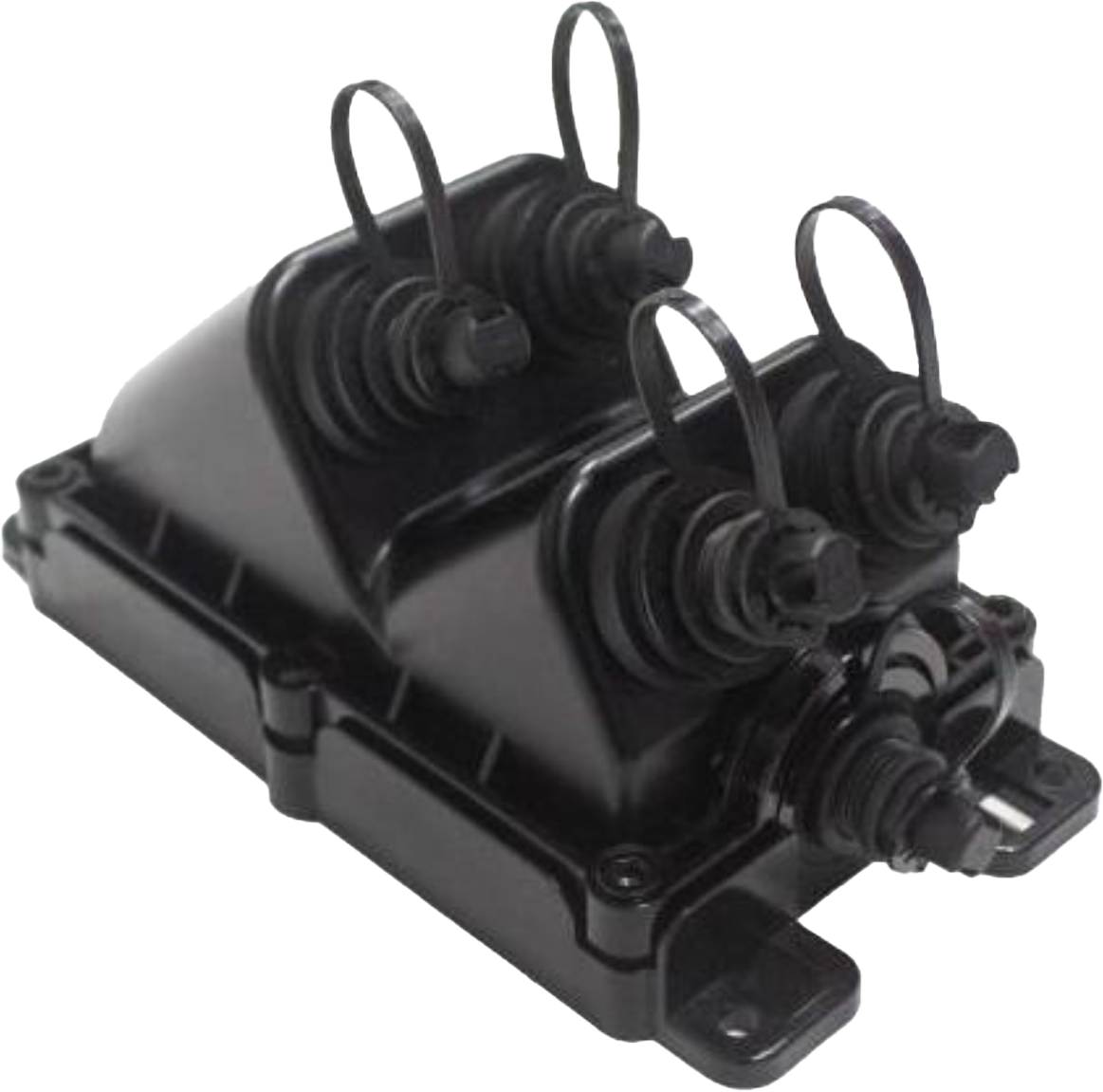

LiteLinx Stubless MST – Tail-Free Multiport Service Terminal
Stubless Multiport Service Terminal with 4–12 ports and integrated splitters. IP68-rated, compact, and factory-sealed for aerial, underground, or pole-mounted fiber deployments. Compatible with OptiTap® and hardened SC/APC connectors—no tail, no hassle.
Product Overview
The LiteLinx Stubless MST (Tail-Free) Multiport Service Terminal redefines simplicity and efficiency in FTTH/FTTx fiber networks. Engineered with a tail-less design, this terminal eliminates pre-terminated tails and enables direct plug-in drop cable connections—reducing field complexity and per-unit costs.
Compact. Reliable. Built for clean installs.
Built for durability, it features a rugged, weather-sealed enclosure with modular ports that scale with network demands. Its internal architecture supports easy access to splicing, splitter modules, and cable routing, all while maintaining secure protection against environmental elements. With no stub tails to manage, the Stubless MST simplifies warehousing, installation, and maintenance across diverse deployments—perfect for both new builds and densification projects.
Available in 4, 6, 8, or 12 hardened SC/APC adapter ports, this rugged terminal is compatible with Corning OptiTap® and other industry-standard hardened connector systems, making it an ideal drop solution for ISPs, utilities, and telecom providers.
The compact body includes optional integrated PLC splitters (1x4, 1x6, 1x8, 1x12), providing flexible signal distribution in the field while reducing the need for external splitter boxes. Built for harsh outdoor environments, the enclosure operates reliably in temperatures from –40°C to +70°C, with a UL94-V0 fire-rated housing and compliance with IEC 61753-1 performance standards.
LiteLinx Stubless MST delivers the benefits of pre-terminated solutions without the spool, ensuring low visual clutter, simplified routing, and faster fiber access.
Key Features
- Stubless design – no tail required, no slack storage needed
- IP68-rated sealed enclosure for outdoor durability and watertight performance
- Available with 4, 6, 8, or 12 hardened SC/APC ports
- Supports integrated splitters (1x4, 1x6, 1x8, 1x12)
- Compatible with OptiTap® and H-connector systems
- –40°C to +70°C operating temperature range
- Compact and versatile for aerial, pole, and underground installations
- Insertion Loss ≤ 0.15 dB, splitter certified to IEC 61753-1
- RoHS-compliant and flame-rated UL94-V0
Technical Specifications
|
Specification |
Value |
|---|---|
|
Port Options |
4, 6, 8, or 12 SC/APC Hardened Ports |
|
Adapter Compatibility |
OptiTap®, H-connector compatible |
|
Integrated Splitters |
1x4, 1x6, 1x8, or 1x12 |
|
Ingress Protection |
IP68 |
|
Temperature Range |
–40°C to +70°C |
|
Fire Rating |
UL94-V0 |
|
Splitter Compliance |
IEC 61753-1 |
|
Typical Insertion Loss |
≤ 0.15 dB |
|
Material Compliance |
RoHS (Directive 2011/65/EU) |
|
Ordering Codes |
MST4-14SPLT, MST6-16SPLT, MST8-18SPLT, MST12-112SPLT |
